JG Vibration Isolator Absorber Rubber Isolation Mount

FOB Price:

Open price

Min.Order Quantity:

500 Set/Sets

Supply Ability:

10,000 Set/Sets per Month

Port:

Shanghai or Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Shield

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: Shield

Model Number: JG

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Standard export packing or as per customers' requirements
Delivery Detail: Within 20 days

Specifications

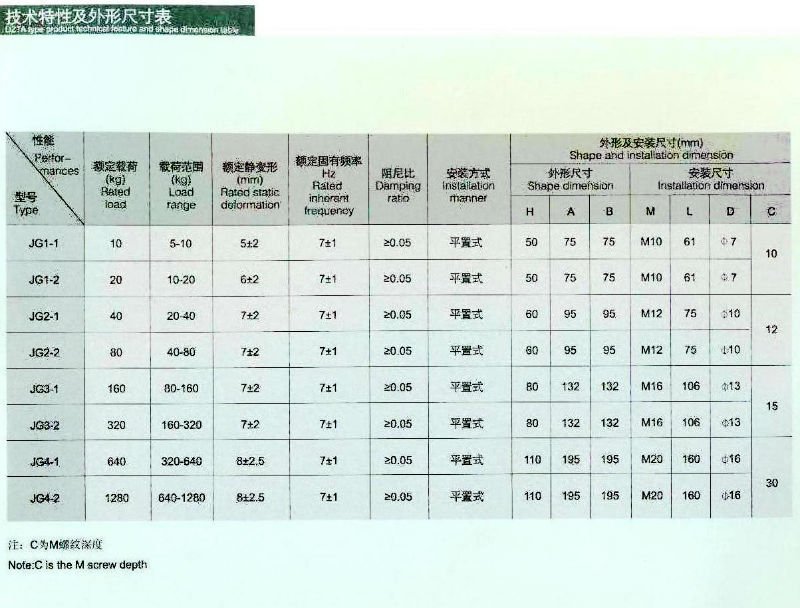

JG vibration isolator absorber
Rated Load: 10~1280kg
Rated deformation:3~12mm
ISO9001, ISO14001, CE certificated

JG Vibration Isolator Absorber Rubber Isolation Mount

Rated Load: 10~1280kg
Rated deformation:3~12mm
ISO9001, ISO14001, CE certificated

Applications: JG type rubber shear vibration isolator is widely used in water pump, fan, air-stressing machines, diesel engines and refrigerators, It also suitable for the application in the isolation and protaction of aircraft, shipping and locomotive industries.

The JG rubber shearing shock absorber is made of metal piece and rubber, its elasticity has adopted symmetrical axial shearing structure. There are 4 dimension structures and 8 weight bearing specifications.

And its nominal load are from 10 kg to 1280kg.

Static distortion under nominal load: 3~12mm;

The corresponding connatural frequency :5~11Hz;

And the damp ratio is larger than 0.05

Compact structure; small-sized, light-weighted and convenient for installation.

The effect of vibration isolation will bw excellent if the rotation speed and reciprocate movement over 1000rpm revolutions.
